Industrial control all-in-one computer

Model	YPC-AD
Product Name	Industrial Panel PC
Display Screen	21.5inch
Machine Size	523.5mm*342.5mm*58.5mm
Material	Cast Aluminum Panel, Aluminum Profile Back Over
Touch Screen	10-Point Capacitive Touch
Resolution	1920*1080
Brightness	250cd/m²
Cooling Method	Fanless
Installation	Support Wall-Mounted/Embedded/Desktop
Storage Environment	-20℃~75℃, 5%~95% non condensing

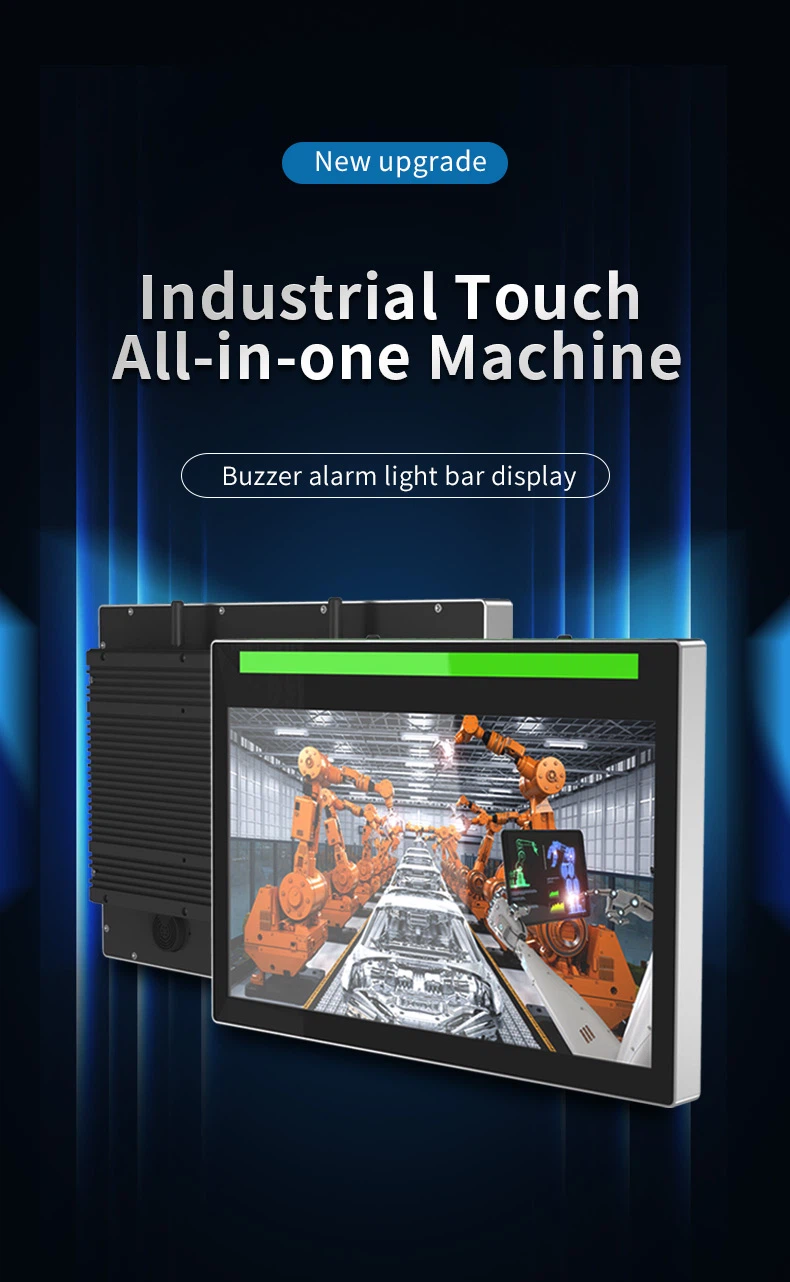

As a highly integrated solution, the YPC-AD enhances visibility into production line status by providing instant visual and audible feedback through its built-in signal light bar. This multi industrial touch panel PC not only streamlines human-machine interaction but also supports complex industrial applications across multiple sectors.

The fanless panel PC touch screen design ensures silent operation, superior heat dissipation, and long-term stability-making it ideal for 24/7 industrial environments. With its IP65 industrial computer front panel, the device is fully protected against dust and water, allowing reliable performance in harsh or washdown-prone settings.

Additionally, the panel PC dual network configuration offers redundant or segmented networking options, enhancing system security and connectivity. This is particularly valuable in smart factory setups, where stable communication between control systems, MES platforms, and field devices is essential for uninterrupted operations.

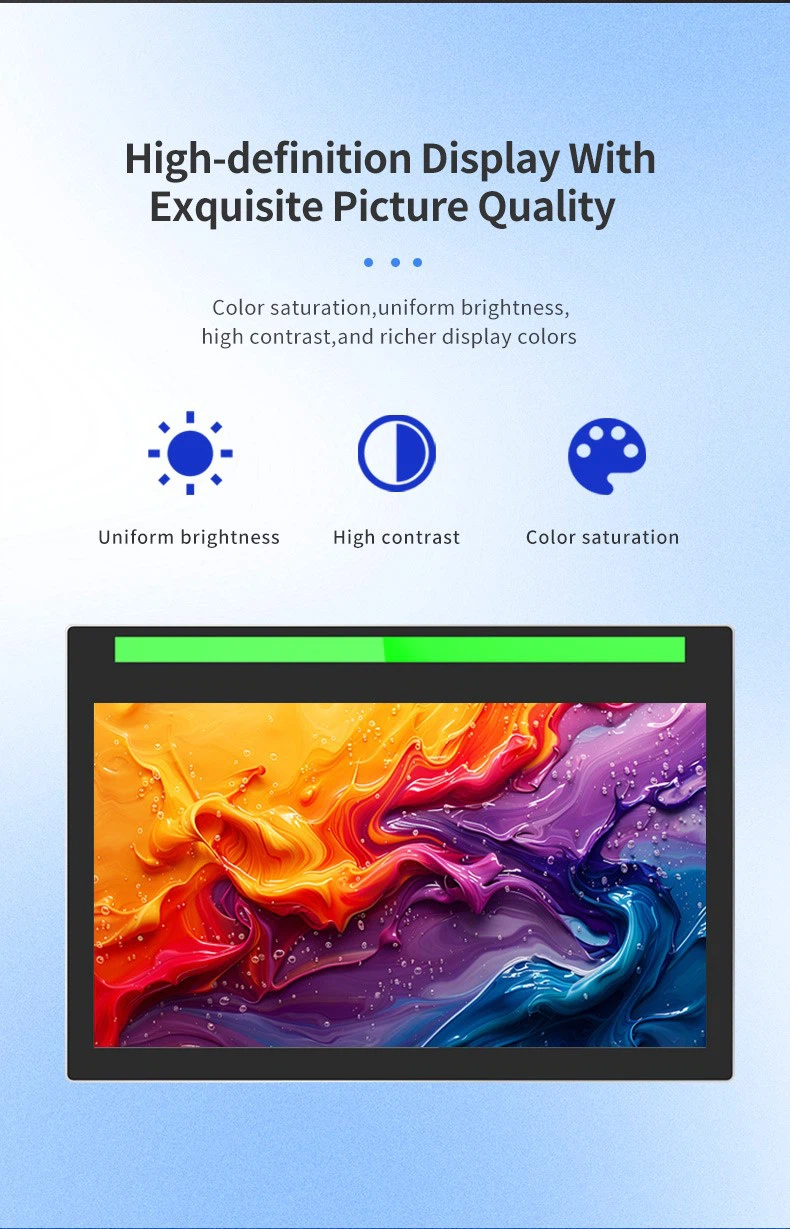

The high-definition display provides stunning visual clarity with resolutions up to 1920×1080 or higher, delivering crisp images and vivid colors essential for control systems, data visualization, or surveillance interfaces. Meanwhile, the multi-touch capacitive screen enables accurate and responsive gesture control, enhancing user interaction in real-time operations.

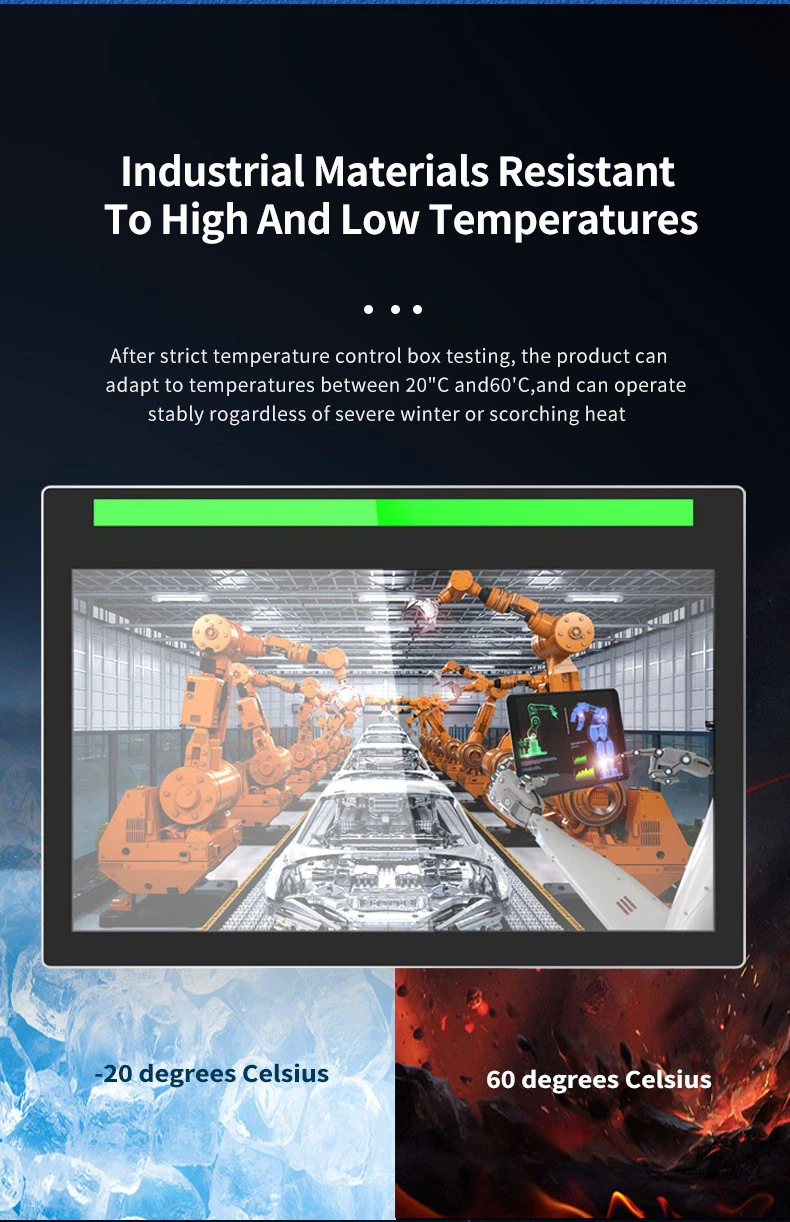

Engineered for field reliability, the panel PC is both shockproof and anti-magnetic, protecting internal components from mechanical impact and magnetic interference often found in factory floors or transport systems. It is also built to endure extreme temperatures, operating smoothly in conditions ranging from -20°C to 70°C, making it suitable for both indoor and outdoor industrial applications.

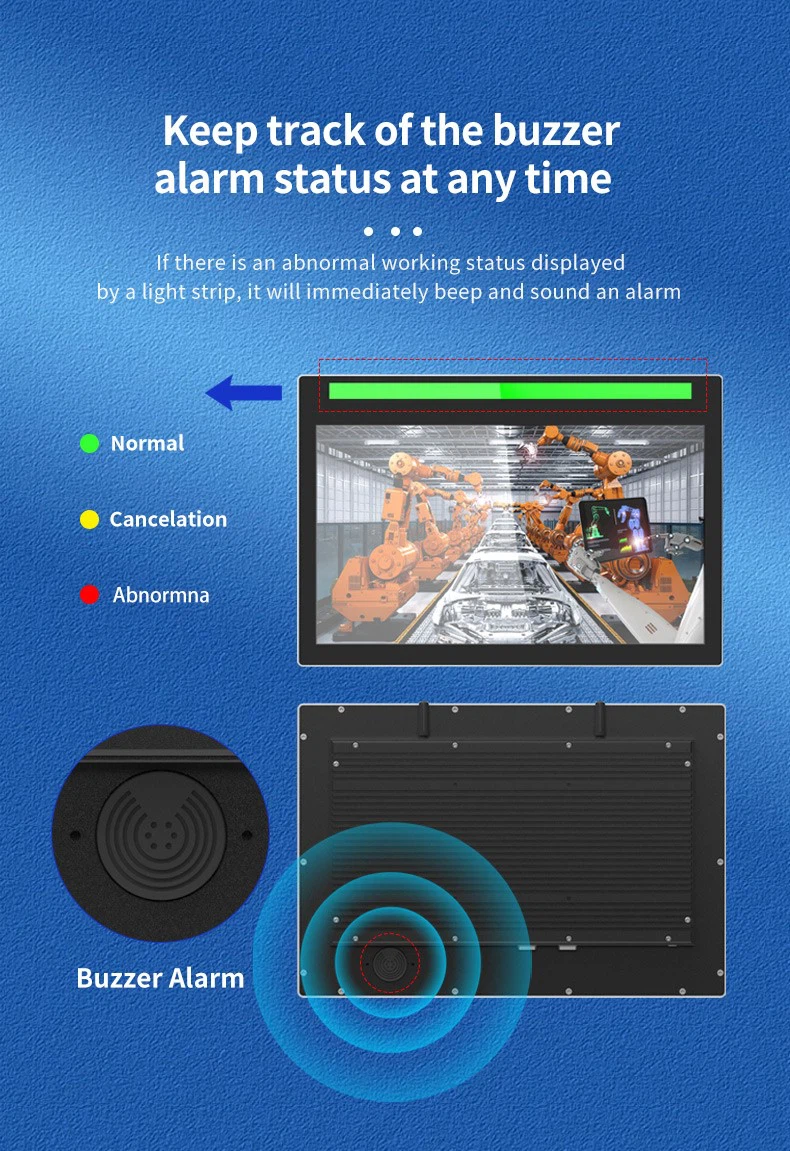

This industrial panel PC features an integrated buzzer alarm light bar display, providing both visual and audible alerts for enhanced operational safety. The built-in multi-color LED warning light combined with a high-decibel buzzer module ensures real-time status indication and fault notifications, significantly reducing response time in industrial environments. Whether it’s over-temperature, equipment failure, or production anomalies, the alert system offers immediate feedback to operators and maintenance staff.
